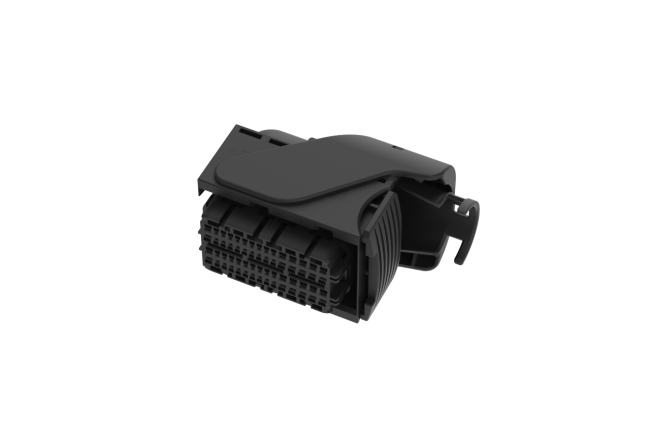

154Pin DIP R/A WTB Connector

CCS Series

P/N : AAUTA204-K001CCQ

Prev
Next
  ●  Outer Dimensions


    Component Information

TypeP/NDescription       Key             Color            Material
Male  AAUTA204-K001CCQ       154Pin DIP R/A WTB Connector - Male     ABlackPBT
     Female         ACCS0004-K001GCQ         94Pin DIP R/A WTB Connector - Female    A BlackPBT
    ACCS0005-K001GCQ         60Pin DIP R/A WTB Connector - Female    A BlackPBT
    ACCS0006-K001GCQ          Wire Cap for 94Pin Conn.A BlackPBT
    ACCS0012-K001GCQ       Wire Cap for 60Pin Conn.A BlackPBT
    ACCS0008-K001GCQ         154Pin DIP R/A WTB Connector - Female Lever     A BlackPA66


Key Performance
Rated Voltage24V
Rated CurrentSignal:2A , Power:17A
Dielectric Withstanding Voltage1000V AC, 60s
Cable Cross AreaSignal:0.22 ~ 0.5mm² , Power:0.75 ~ 2.5mm²
Insulation Resistance100MΩ @500V DC
Operating Temperature-40℃ ~ 125℃
Durability Life20 Cycles
IP Grade(mated)IP67/69K
Test StandardUSCAR-2
