P/N : APC6A021-P001C00CX / APC6A003
.png)
.png)

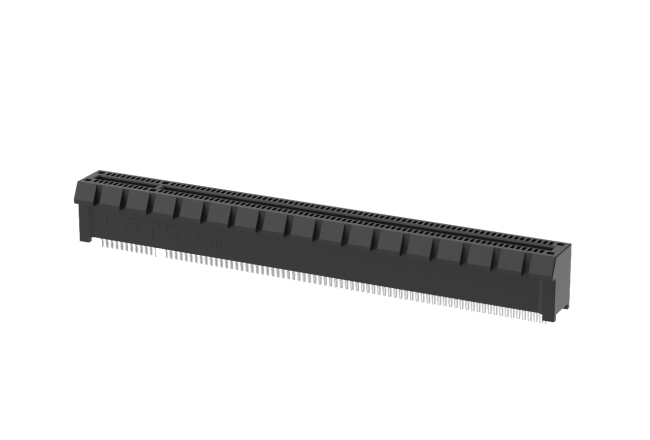

PCIe 6.0 Card Edge Connector solution for data-intensive markets like Data Center, High-Performance Computing, AI PC, Automotive, etc.
Capable of transmitting high-speed signal up to 64Gbps PAM4 / PCIe 6.0, the PCIe Gen 6 Card Edge Connector caters for the industry demand for high-speed, power-efficient, low-latency, and maintains backwards compatibility with all prior generations of PCIe technology.
Application
・ Server / Data Center
・ High-Performance Computing
・ Storage
・ Artificial Intelligence / Machine Learning
・ Automotive
・ IoT
Feature
・ Small form factor
・ 1.00mm pitch
・ Various configurations: X1, X4, X8, X16
・ Excellent SI performance: Supporting up to 64Gbps PAM4 / PCIe 6.0
・ Backward compatible with PCIe 5.0 / 4.0 / 3.0
・ Various latch types available for selection
The following part numbers are available, other configurations are pending for clients' demand.
| Type | P/N | Pin Count | Channel |
| Vertical | APC6A002 | 164 Pin | X16 |
| Straddle Mount | APC6A003 | 164 Pin | X16 |
| Product General Characteristic | |
|---|---|
| Product Overview | PCIe Gen 6 Vertical / Straddle Mount |
| Component Type | Receptacle |
| Physical Characteristic | |
|---|---|
| Housing Material | High Temperature Plastic |
| Contact Material | Copper Alloy |
| Plating Material on Contact Area | Au |
| Plating Thickness on Contact Area | 30u’’ |
| Circuits | 36 / 64 / 98 / 164 Pin |
| Pitch | 1.0 mm |
| Durability | 50 Cycles |
| Housing Color | Black |
| Electrical Characteristic | |
|---|---|
| Current Rating | 1.1 A |
| Max. Voltage | 30 V |
| Solder Process Characteristic | |
|---|---|
| Solder Process Type | IR Reflow |
| Max. Process Temperature | 260℃ ± 5℃ |
| Duration at Max. Process Temperature | 10s |
| Environment Characteristic | |
|---|---|
| RoHS/ Halogen Free(HF) Compliance | HF |
| Others | |
|---|---|
| Packaging | Reel |
