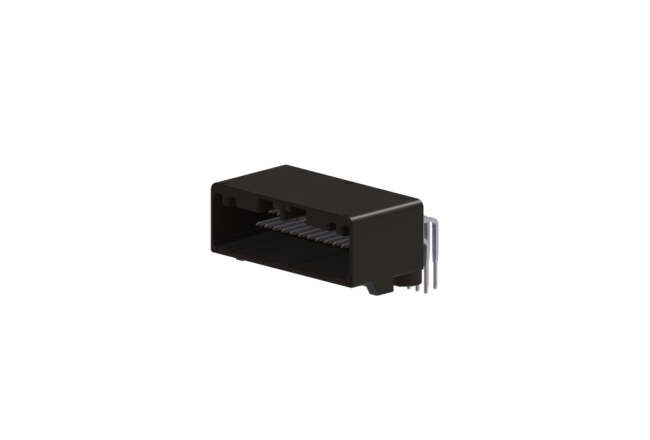

Professional Problem Solver in Connected CommunityAutomotive DIP R/A Header
BMS Series Connector
P/N : AAUS01AP2 / BP2 / CP2 / DP2
| Pin Count | Part Number | Key Option | Color | Housing Material |
| 12 | AAUS01AP2-012K02 | A | Black | PBT |
| 12 | AAUS01DP2-012K02 | D | Brown | PBT |
| 12 | AAUS01AP2-012K05 | A | Black | PA9T |
| 16 | AAUS01AP2-016K02 | A | Black | PBT |
| 16 | AAUS01DP2-016K02 | D | Brown | PBT |
| 20 | AAUS01AP2-020K02 | A | Black | PBT |
| 20 | AAUS01DP2-020K02 | D | Brown | PBT |
| 20 | AAUS01AP2-020K05 | A | Black | PA9T |
| 24 | AAUS01AP2-024K02 | A | Black | PBT |
| 24 | AAUS01BP2-024K02 | B | Gray | PBT |
| 24 | AAUS01CP2-024K02 | C | Blue | PBT |
| 24 | AAUS01DP2-024K02 | D | Brown | PBT |
| 28 | AAUS01AP2-028K02 | A | Black | PBT |
| 28 | AAUS01BP2-028K02 | B | Gray | PBT |
| 28 | AAUS01CP2-028K02 | C | Blue | PBT |
| 28 | AAUS01DP2-028K02 | D | Brown | PBT |
| 28 | AAUS01AP2-028K05 | A | Black | PA9T |
| 32 | AAUS01AP2-032K02 | A | Black | PBT |
| 32 | AAUS01BP2-032K02 | B | Gray | PBT |
| 32 | AAUS01CP2-032K02 | C | Blue | PBT |
| 32 | AAUS01DP2-032K02 | D | Brown | PBT |
| 32 | AAUS01AP2-032K05 | A | Black | PA9T |
| 36 | AAUS01AP2-036K02 | A | Black | PBT |
| 36 | AAUS01DP2-036K02 | D | Brown | PBT |
| 40 | AAUS01AP2-040K02 | A | Black | PBT |
| 40 | AAUS01BP2-040K02 | B | Gray | PBT |
| 40 | AAUS01CP2-040K02 | C | Blue | PBT |
| 40 | AAUS01DP2-040K02 | D | Brown | PBT |
 | Key option - Color | A - Black B - Gray C - Blue D - Brown |
 | Pin count | 12, 16, 20, 24, 28, 32, 36, 40 |
| Product General Characteristic | |
|---|---|
| Product Overview | Automotive DIP R/A Header |
| Orientation | Right Angle |
| Product Applications | Automotive Battery Management System, ECU, Automotive Sensor |
| Physical Characteristic | |
|---|---|
| Housing Material | PA or PBT |
| Plating Material on Contact Area | Gold |
| Circuits | 12, 16, 20, 24, 28, 32 |
| Pitch | 2.20mm |
| Flammability | UL94-V0 |
| Durability Life | 50 Cycles Min. |
| Electrical Characteristic | |
|---|---|
| Rated Current | 3A |
| Rated Voltage | 100V DC |
| DWV | 1000V AC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 100MΩ |
| Solder Process Characteristic |
|---|
| Environment Characteristic | |
|---|---|
| RoHS / Halogen Free (HF) Compliance | RoHS |
| Operation Temperature | -40℃ ~ 125℃ |
| Others |
|---|
