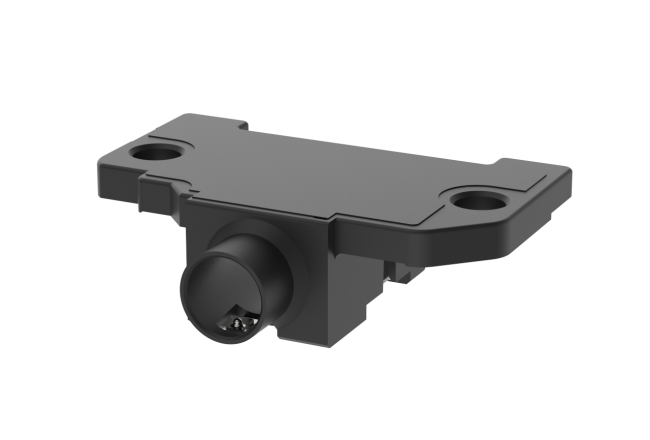

Audio Jack CH1.30 No Soldering

Audio Jack

P/N : AJAK0119

Prev
Next

Instead of traditional soldering method, this 3.5mm 4Pole Audio Jack adopts a more convenient and environment-friendly way by direct attach with screw retention to ensure contact stability and subsequently reduce maintenance cost. Product's information, such as model and date code can be easily obtained by scanning QR code on the product.




Application

Laptop

Desktop

Feature

・ Small space span

・ QR code scanning to access detail information

・ -1.3mm center height

・ 1.93mm on board height

・ Designed for reduce Notebook thickness

・ Adopt screw attach instead of soldering

・ Compliant with OMTP and CTIA







Product General Characteristic
Product OverviewAudio Jack CH1.30 No Soldering
Component TypeReceptacle
Physical Characteristic
Housing MaterialHigh Temperature Plastic
Contact MaterialCopper Alloy
Plating Material on Contact AreaGold
Plating Thickness on Contact AreaAu 5u"
Circuits6
Durability5000 Cycles
Electrical Characteristic
Current Rating1A/Pin
Max. Voltage12V
Solder Process Characteristic
Environment Characteristic
RoHS/ Halogen Free(HF) ComplianceHF
Others
PackagingTray
