Professional Problem Solver in Connected CommunityAutomotive Vertical BMS Header

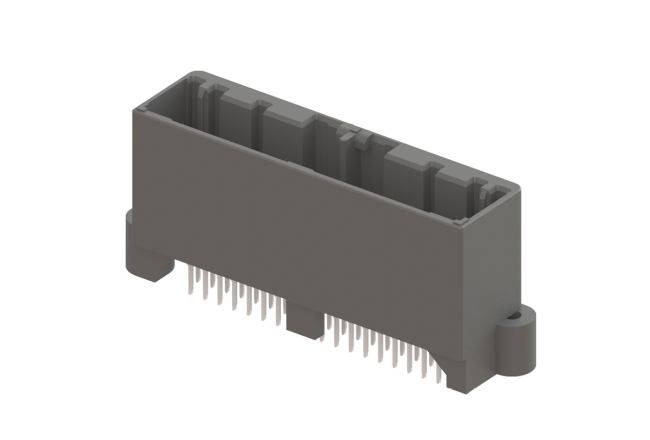

BMS Series Connector
P/N : AAUS01AP4 / BP4 / CP4 / DP4
LOTES screw retention BMS connector enable the product to be used on more harsh environment, it provides reinforcement to the connector and able to withstand stronger vibration. The foolproof and color coded designed also prevent mis-insertion. This connector is currently available in 32/36/40 pin counts.
Application
・ Automotive Electrical Control Units (ECU)
・ Battery System Components for Electric Vehicles (EV)
・ Battery Management System(BMS)
Feature
・ Connector with 0.64mm size terminals
・ Durable contacts with 2-layer spring structure
・ Retainer that detects incomplete insertion of terminals during harness work
・ Bridge structure on the lock spring
・ Mounting type for vertical connection to board
・ Mating height : 29.85mm
・ 2.20mm pitch, 32/36/40PIN
・ 18~22 AWG wire gauges
Application
・ Automotive Electrical Control Units (ECU)
・ Battery System Components for Electric Vehicles (EV)
・ Battery Management System(BMS)
Feature
・ Connector with 0.64mm size terminals
・ Durable contacts with 2-layer spring structure
・ Retainer that detects incomplete insertion of terminals during harness work
・ Bridge structure on the lock spring
・ Mounting type for vertical connection to board
・ Mating height : 29.85mm
・ 2.20mm pitch, 32/36/40PIN
・ 18~22 AWG wire gauges
| Physical Characteristic | |
|---|---|
| Key Code | A/B/C/D |
| Pin No. | 32/36/40 |
| Flammability | UL94-V0 |
| Pitch | 2.2 |
| Durability Life | 50 Cycles Min. |
| Electrical Characteristic | |
|---|---|
| Contact Resistance | 20mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| DWV | 1000V AC |
| Rated Voltage | 60V |
| Rated Current | 3A/Pin |
| Environment Characteristic | |
|---|---|
| Environmental Standards | RoHS & HF |
| Salt Spray | 48H |
| Operation Temperature | -40°C~125°C |
| Product General Characteristic | |
|---|---|
| Product Applications | Automotive BMS, ECU, EV. |
