Slim Cool Edge 0.65mm, SMT, Black, HF

· ASLI0005 - 100Pin
· ASLI0003 - 140Pin
---------------------
· ASLI0001 - 60Pin
· ASLI0008 - 120Pin
· ASLI0004 - 160Pin
· ASLI0006 - 200Pin
---------------------
· ASLI0002 - 192Pin

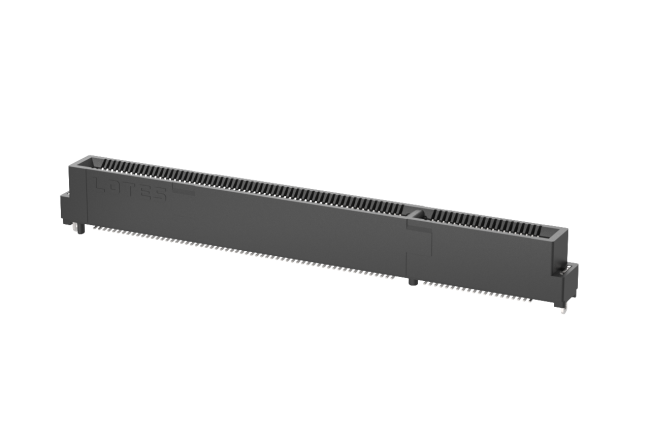

Slim Cool Edge

P/N : ASLI0001/2/3/4/5/6/8

Prev
Next
The Slim Cool Edge connector is a high density hybrid power and signal connector that provides integrated high-speed and high-density solutions. Designed at 0.65mm signal spacing and multiple right angles, mezzanine, coplanar structures in vertical configuration, the connectors are available in pin counts range from 60 to 200.



Application
 ・ Server
 ・ Networking
 ・ High-end computing



Feature
・ High data transmission rate up to 16Gb/s with PCIe 4.0 specification compliance.
・ 100pin / 140pin can meet transmission rate up to 32Gb/s with PCIe 5.0 specification compliance.
・ Supports 1.6mm thick mating board














Product General Characteristic
Product OverviewSlim Cool Edge 0.65mm, SMT, Black, HF
Component TypeReceptacle
Physical Characteristic
Housing MaterialHigh Temperature Plastic
Contact MaterialCopper Alloy
Plating Material on Contact AreaGold
Plating Thickness on Contact AreaAu 30u”
Circuits100pin / 140pin / 60pin / 120pin / 160pin / 200pin / 192pin
Electrical Characteristic
Current Rating100 / 140pin: 0.5A~1A/pin; 192pin: Power pin 2.5A/pin, signal pin 0.5A/pin; Other pins: 0.5A/pin
Max. Voltage3.3V
Solder Process Characteristic
Environment Characteristic
RoHS/ Halogen Free(HF) ComplianceHF
Others
PackagingReel / Tray
