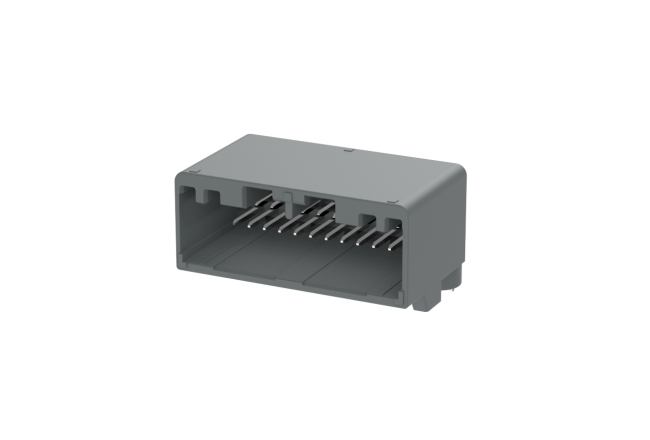

Professional Problem Solver in Connected Community24Pin DIP R/A WTB Connector
2.20mm Pitch DIP R/A WTB
P/N : AAUS01***-024K**
● Outer Dimensions
● Component Information
● Component Information
| Type | P/N | Description | Key | Color | Material |
| Male | AAUS01AP2-024K02 | 24Pin DIP R/A WTB Connector - Male | A | Black | PBT |
| AAUS01BP2-024K02 | B | Gray | PBT | ||
| AAUS01CP2-024K02 | C | Blue | PBT | ||
| AAUS01DP2-024K02 | D | Brown | PBT | ||
| Female | AAUS01AS0-024K02 | 24Pin DIP R/A WTB Connector - Female | A | Black | PBT |
| AAUS01BS0-024K02 | B | Gray | PBT | ||
| AAUS01CS0-024K02 | C | Blue | PBT | ||
| AAUS01DS0-024K02 | D | Brown | PBT |
| Key Performance | |
|---|---|
| Rated Voltage | 12V |
| Rated Current | 3A |
| Dielectric Withstanding Voltage | 1000V AC, 60s |
| Cable Cross Area | 0.22 ~ 0.75mm² |
| Insulation Resistance | 100MΩ @500V DC |
| Operating Temperature | -40℃ ~ 125℃ |
| Durability Life | 50 Cycles |
| IP Grade(mated) | IP2XB |
| Test Standard | USCAR-2 |
