28Pin DIP R/A WTB Connector

2.54mm Pitch DIP R/A WTB

P/N : AAUS02***-028K**

Prev
Next
  ●  Outer Dimensions


    Component Information

TypeP/NDescription       Key             Color            Material
MaleAAUS02AP2-028K0328Pin DIP R/A WTB Connector - MaleABlackPA9T

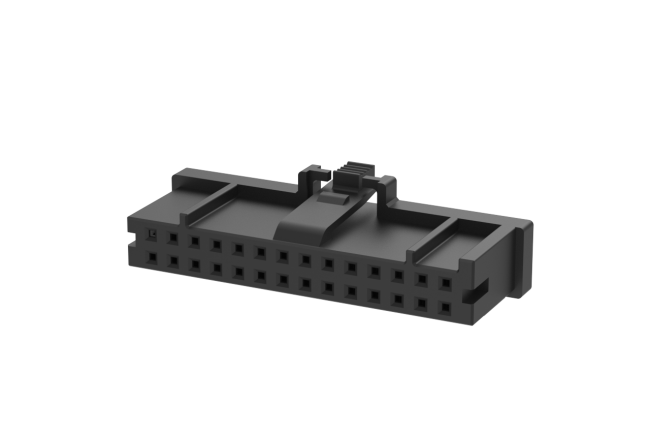

     Female         AAUS02AS0-028K01        28Pin DIP R/A WTB Connector - Female    A BlackPBT


Key Performance
Rated Voltage12V
Rated Current3A
Dielectric Withstanding Voltage1000V AC, 60s
Cable Cross Area0.35 ~ 0.5mm²
Insulation Resistance100MΩ @500V DC
Operating Temperature-40℃ ~ 125℃
Durability Life50 Cycles
IP Grade(mated)IP2XB
Test StandardUSCAR-2
