1.80mm Pitch SMT R/A WTB

P/N : AAUS03***-010K**

● Outer Dimensions

● Component Information

Type	P/N	Description	Key	Color	Material
Male	AAUS03AP5-010K02	10Pin SMT R/A WTB Connector - Male	A	Black	PA9T

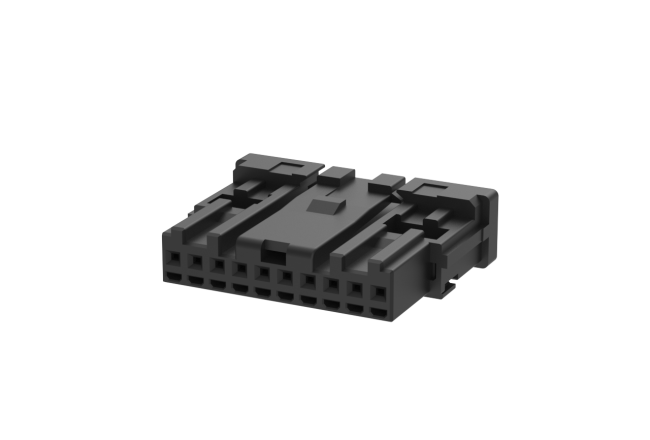

Female	AAUS03AS0-010K01	10Pin SMT R/A WTB Connector - Female	A	Black	PA10T

Key Performance
Rated Voltage	12V
Rated Current	3A
Dielectric Withstanding Voltage	650V AC, 60s
Cable Cross Area	0.22 ~ 0.35mm²
Insulation Resistance	100MΩ @500V DC
Operating Temperature	-40℃ ~ 125℃
Durability Life	20 Cycles
IP Grade(mated)	IP2XB
Test Standard	USCAR-2
