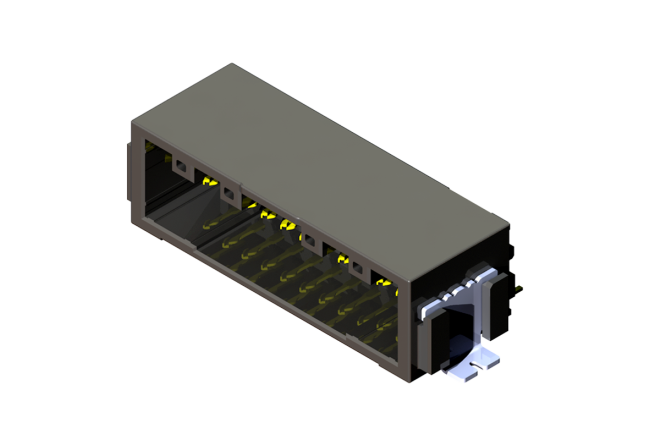

Professional Problem Solver in Connected Community24 Pin SMT R/A WTB Connector
2.00mm Pitch SMT R/A WTB
P/N : AAUS04***-024K**
.png)
.png)
● Outer Dimensions
● Component Information
● Component Information
| Type | P/N | Description | Key | Color | Material |
| Male | AAUS04AP2-024K02 | 24 Pin SMT R/A WTB Connector - Male | A | Black | LCP |
| Female | AAUS04AS0-024K01 | 24 Pin SMT R/A WTB Connector - Female | A | Black | PA9T |
| Key Performance | |
|---|---|
| Rated Voltage | 12V |
| Rated Current | 3A |
| Dielectric Withstanding Voltage | 1000V AC, 60s |
| Cable Cross Area | 0.30mm² |
| Insulation Resistance | 100MΩ @500V DC |
| Operating Temperature | -40℃ ~ 125℃ |
| Durability Life | 50 Cycles |
| IP Grade(mated) | IP2XB |
| Test Standard | USCAR-2 |
