2.00mm Pitch DIP R/A WTB

P/N : ABMS01***-012K**

● Outer Dimensions

● Component Information

Type	P/N	Description	Key	Color	Material
Male	ABMS01AP2-012K02	12Pin DIP R/A WTB Connector - Male	A	Black	PA9T

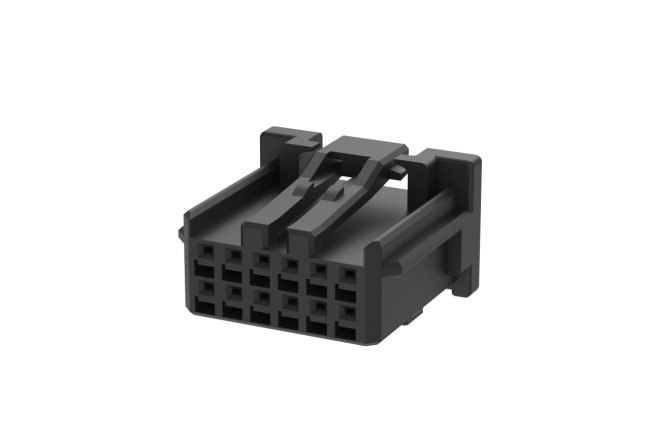

Female	AAUS05AS0-012K01	12Pin DIP R/A WTB Connector - Female	A	Black	PA9T

Key Performance
Rated Voltage	12V
Rated Current	3A
Dielectric Withstanding Voltage	1000V AC, 60s
Cable Cross Area	0.13 ~ 0.22mm²
Insulation Resistance	100MΩ @500V DC
Operating Temperature	-40℃ ~ 125℃
Durability Life	50 Cycles
IP Grade(mated)	IP2XB
Test Standard	USCAR-2
