Professional Problem Solver in Connected Community20Pin DIP R/A WTB Connector
1.80mm Pitch DIP R/A WTB
P/N : ABMS08***-020K**

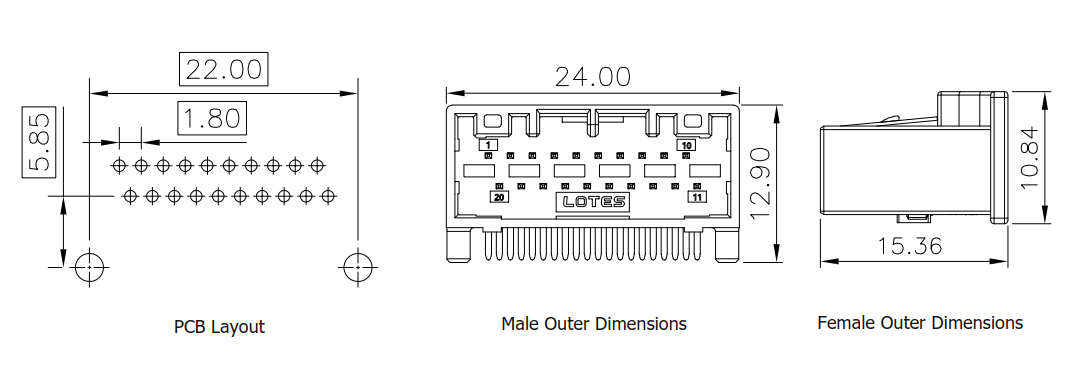

● Outer Dimensions
● Component Information
● Component Information
| Type | P/N | Description | Key | Color | Material |
| Male | ABMS08AP2-020K12 | 20Pin DIP R/A WTB Connector - Male | A | Black | PBT |
| ABMS08BP2-020K12 | B | Gray | PBT | ||
| Female | ABMS08AS0-020K01 | 20Pin DIP R/A WTB Connector - Female | A | Black | PA10T |
| ABMS08BS0-020K01 | B | Gray | PA10T |
| Key Performance | |
|---|---|
| Rated Voltage | 12V |
| Rated Current | 2A per Pin |
| Dielectric Withstanding Voltage | 500V AC, 60s |
| Cable Cross Area | 0.22 ~ 0.35mm² |
| Insulation Resistance | 100MΩ @500V DC |
| Operating Temperature | -40℃ ~ 125℃ |
| Durability Life | 10 Cycles |
| IP Grade(mated) | IP2XB |
| Test Standard | USCAR-2 |
